57 Bldc series
57 Bldc series
- 免费电话：4006900109
- 咨询热线：021-63831567
- 电子邮件：deyusheng@163.com
General Specifications
| Item | Specification |
|---|---|
| Winding type | Star/Delta |
| Hall effect angle | 120 degree electric angle |
| Shaft runout | 0.025mm |
| Radial play | 0.05mm/50g |
| End play | 0.04mm/50g |
| Max radial force | 30N/20mm from the flange/法兰方向 |
| Max axial force | 20N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electric Connection
| Lead No. | Lead color | L ead gauge | Function | Description |
|---|---|---|---|---|
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PAHSE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
Electrical Specification
| Model | No.of Phase | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Mass | Body length |
|---|---|---|---|---|---|---|---|
| D.M.BERG57BLDC-001A | 3 | 36 | 4000 | 0.055 | 23 | 0.3 | 45 |
| D.M.BERG57BLDC-002A | 3 | 36 | 4000 | 0.08 | 50 | 0.35 | 55 |
| D.M.BERG57BLDC-003A | 3 | 36 | 6000 | 0.22 | 92 | 0.5 | 75 |
| D.M.BERG57BLDC-004A | 3 | 24 | 4000 | 0.32 | 133 | 0.65 | 95 |
| D.M.BERG57BLDC-005A | 3 | 24 | 4000 | 0.43 | 180 | 0.8 | 115 |

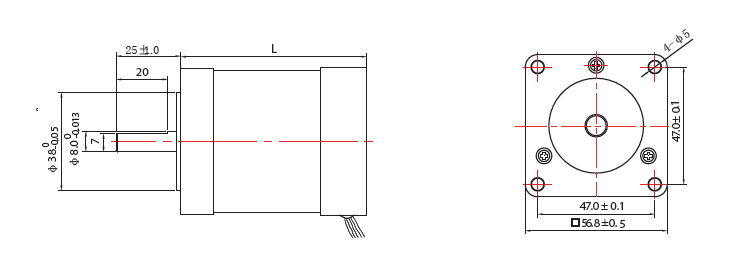

Mechanical Dimensions
