HB-28S hybrid stepping motor

HB-28S
□28mm　|　1.8°　|　Bipolar　|　Unipolar

Model No	Step torque angle (deg)	Rated Voltage (V)	Current (A)	Resistance (ohm)	Inductance (mH)	Holding Torque (mN.m)	Rotor Inertia (g.cm²)	Outgoing line	Weight (g)	Thickness (mm)
HB-28S2601	1.8°	1.9	1.00	1.9	0.9	35	9	6	100	31
HB-28S2602	1.8°	4.8	0.45	10.7	4.7	37	9	6	100	31
HB-28S4601	1.8°	3.4	1.00	3.4	1.6	68	12	6	150	40
HB-28S4602	1.8°	6.6	0.50	13.2	5.7	64	12	6	150	40
HB-28S6601	1.8°	4.6	1.00	4.6	2.3	90	18	6	200	51
HB-28S6602	1.8°	7.4	0.65	11.4	6.3	97	18	6	200	51

Model No	Step torque angle (deg)	Rated Voltage (V)	Current (A)	Resistance (ohm)	Inductance (mH)	Holding Torque (mN.m)	Rotor Inertia (g.cm²)	Outgoing line	Weight (g)	Thickness (mm)
HB-28S2401	1.8°	2.8	1.50	0.9	0.9	35	9	4	100	31
HB-28S2402	1.8°	6.9	0.65	5.3	4.7	35	9	4	100	31
HB-28S4401	1.8°	4.8	0.40	1.7	1.6	96	12	4	150	40
HB-28S4402	1.8°	9.3	0.70	6.6	5.7	90	12	4	150	40
HB-28S6401	1.8°	6.4	1.40	2.3	2.3	133	18	4	200	51
HB-28S6402	1.8°	10.2	0.90	5.7	6.3	141	18	4	200	51

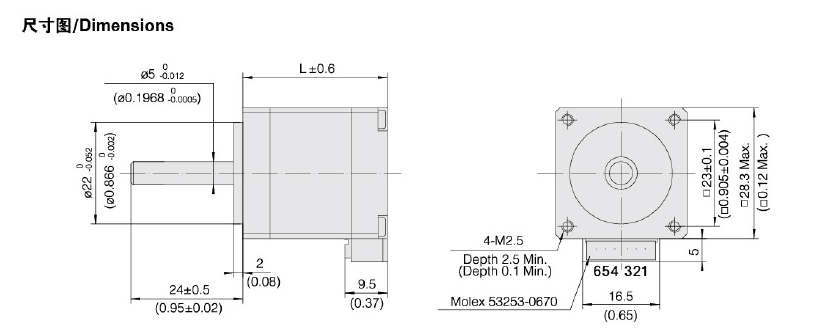

尺寸图

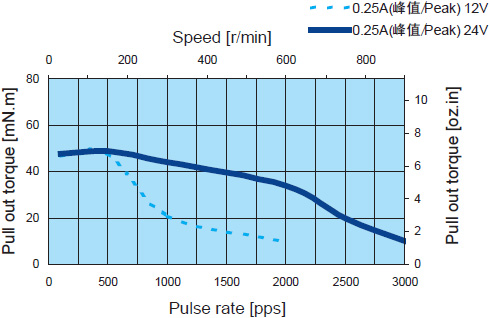

HB-28S2402

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD2528
Mode: Full Step

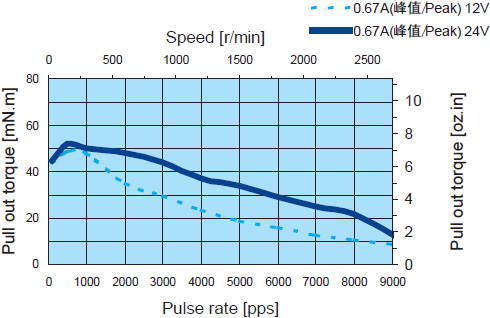

HB-28S2403

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD2528
Mode: Full Step

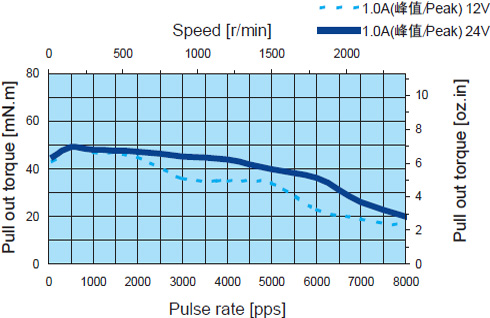

HB-28S2601

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD2528
Mode: Full Step
HB-28S2601

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD2528
Mode: Full Step

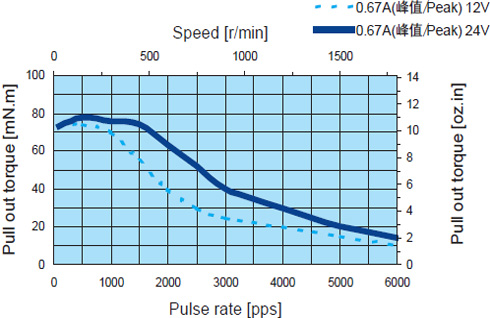

HB-28S4601

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD2528
Mode: Full Step

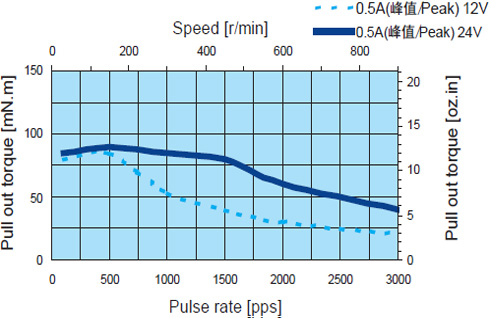

HB-28S6601

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD2528
Mode: Full Step
