HB-42S hybrid stepping motor

HB-42S
□42mm　|　1.8°　|　Bipolar　|　Unipolar

Model No	Step torque angle (deg)	Rated Voltage (V)	Current (A)	Resistance (ohm)	Inductance (mH)	Holding Torque (mN.m)	Rotor Inertia (g.cm²)	Outgoing line	Weight (g)	Thickness (mm)
HB-42S1001	1.8°	3.9	1.0	3.9	3.0	200	40	6	210	33.5
HB-42S1002	1.8°	5.0	0.8	6.3	4.7	200	40	6	210	33.5
HB-42S1003	1.8°	9.5	0.4	23.7	18.9	200	40	6	210	33.5
HB-42S3001	1.8°	3.5	1.2	2.9	3.3	272	57	6	280	39.5
HB-42S3002	1.8°	5.8	0.8	7.3	6.8	258	57	6	280	39.5
HB-42S3003	1.8°	11.0	0.4	27.6	27.0	258	57	6	280	39.5
HB-42S5001	1.8°	4.2	1.2	3.5	2.9	441	82	6	360	47.5
HB-42S5002	1.8°	5.7	0.9	6.5	5.3	444	82	6	360	47.5
HB-42S5003	1.8°	9.8	0.5	19.6	17.0	441	82	6	360	47.5
HB-42S7001	1.8°	3.0	2	1.5	3.3	650	128	6	610	59.7
HB-42S7002	1.8°	6.8	1	6.8	13.2	650	128	6	610	59.7

Model No	Step torque angle (deg)	Rated Voltage (V)	Current (A)	Resistance (ohm)	Inductance (mH)	Holding Torque (mN.m)	Rotor Inertia (g.cm²)	Outgoing line	Weight (g)	Thickness (mm)
HB-42S1004	1.8°	4.7	1.7	1.4	2.1	283	40	4	210	33.5
HB-42S1005	1.8°	7.2	1.15	3.1	4.7	288	40	4	210	33.5
HB-42S1006	1.8°	14.2	0.6	11.8	18.9	300	40	4	210	33.5
HB-42S3004	1.8°	4.6	1.80	1.3	2.5	357	57	4	280	39.5
HB-42S3005	1.8°	8.0	1.10	3.6	6.8	355	57	4	280	39.5
HB-42S3006	1.8°	15.2	0.55	13.8	27.0	355	57	4	280	39.5
HB-42S5004	1.8°	6.0	1.70	1.8	2.9	625	82	4	360	47.5
HB-42S5005	1.8°	8.4	1.20	3.5	6.5	655	82	4	360	47.5
HB-42S5006	1.8°	20.7	0.60	17.2	26.5	662	82	4	360	47.5
HB-42S7003	1.8°	4.2	2.80	0.8	3.3	910	128	4	610	59.7
HB-42S7004	1.8°	9.5	1.40	3.4	13.2	910	128	4	610	59.7

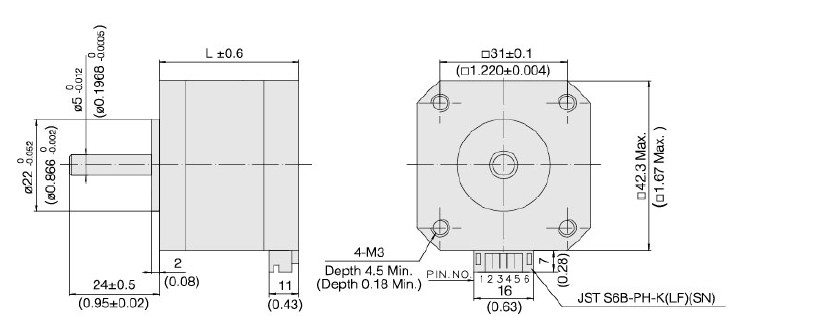

尺寸图

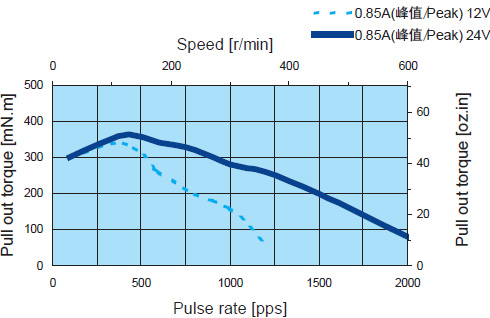

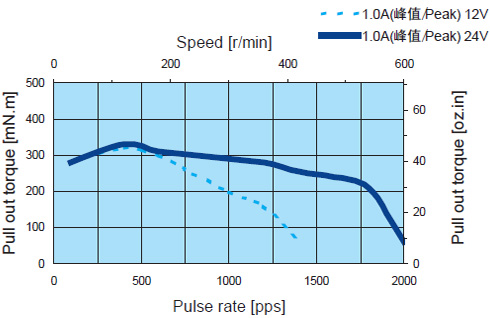

HB-42S1002

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

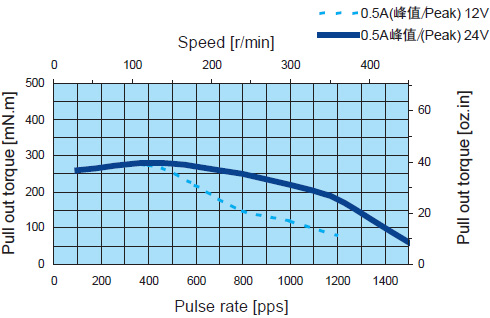

HB-42S1003

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

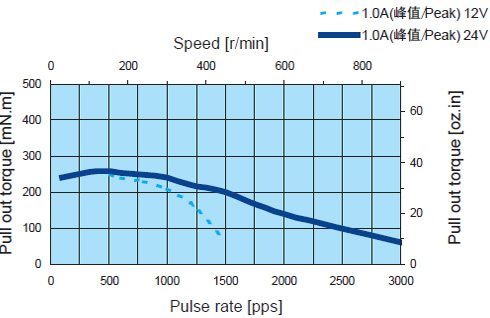

HB-42S1001

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step
HB-42S1002

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

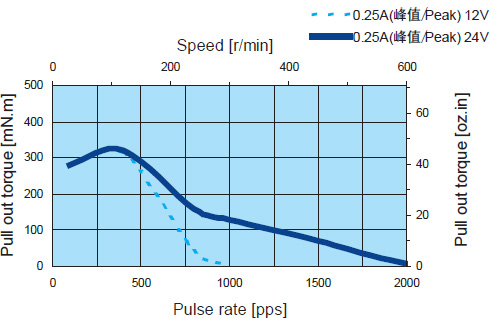

HB-42S1004

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

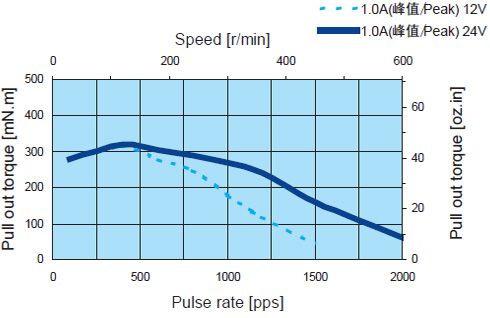

HB-42S1005

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

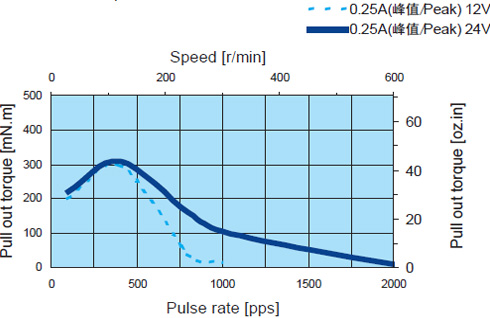

HB-42S1006

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

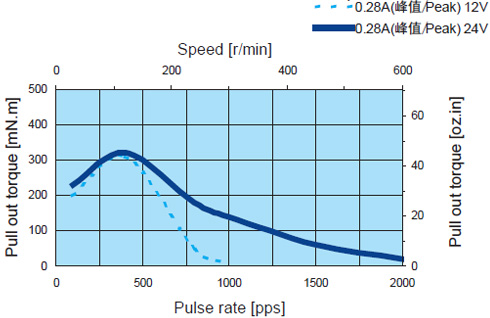

HB-42S1007

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

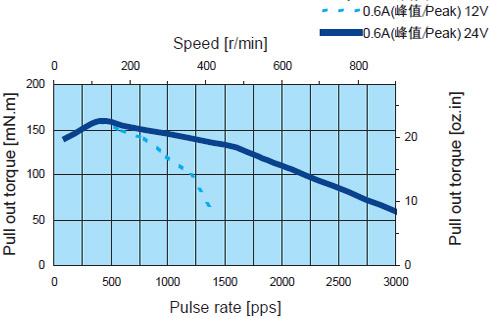

HB-42S3006

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

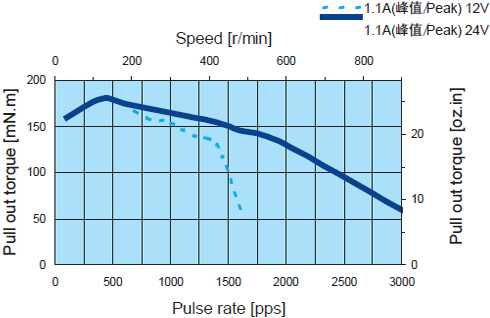

HB-42S3007

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

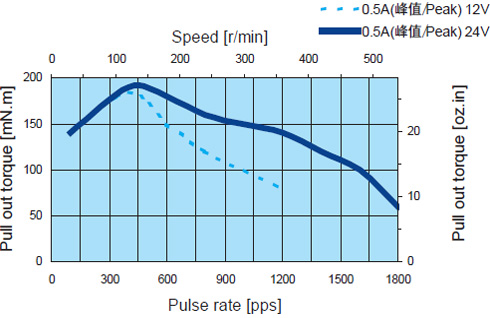

HB-42S1008

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step

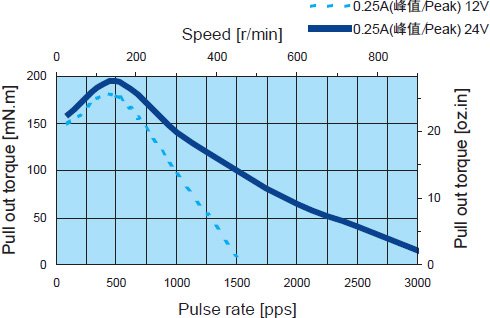

HB-42S3009

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD4845
Mode: Full Step
