HB-86T 3 Phase hybrid stepping motor
HB-86T
□86mm | 1.2° | Bipolar | Low inertia
□86mm | 1.2° | Bipolar | Low inertia
- 免费电话：4006900109
- 咨询热线：021-63831567
- 电子邮件：deyusheng@163.com
Bipolar
| Model No. | Step torque angle (deg) |
Rated Voltage (V) |
Current (A) |
Resistance (ohm) |
Inductance (mH) |
Holding Torque (mN.m) |
Rotor Inertia (g.cm2) |
Outgoing line | Weight (g) |
Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| HB-86T1301 | 1.2° | 6 | 3 | 1.32 | 26.7 | 1892 | 1100 | 4 | 1.7 | 66.5 |
| HB-86T1302 | 1.2° | 3.4 | 6 | 0.38 | 21.6 | 1966 | 1100 | 4 | 1.7 | 66.5 |
| HB-86T2301 | 1.2° | 7.6 | 3 | 1.7 | 26.7 | 2489 | 1400 | 4 | 2.3 | 79.5 |
| HB-86T2302 | 1.2° | 4.4 | 6 | 0.49 | 21.6 | 2586 | 1400 | 4 | 2.3 | 79.5 |
| HB-86T3301 | 1.2° | 9.1 | 3 | 2.02 | 50 | 4043 | 1950 | 4 | 2.7 | 95.5 |
| HB-86T3302 | 1.2° | 5.2 | 6 | 0.58 | 40.5 | 4200 | 1950 | 4 | 2.7 | 95.5 |
| HB-86T5301 | 1.2° | 12.5 | 3 | 2.79 | 73.4 | 6256 | 2850 | 4 | 3.8 | 124 |
| HB-86T5302 | 1.2° | 7.2 | 6 | 0.8 | 59.4 | 6500 | 2850 | 4 | 3.8 | 124 |

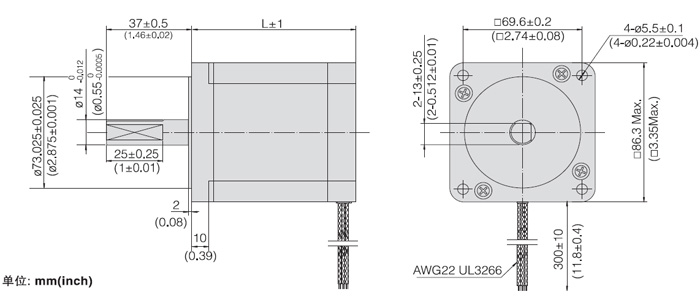

Dimensions
Dynamic Torque Curves
-

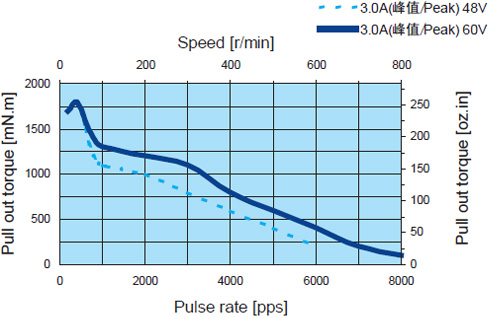

HB-86T1301
Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
-

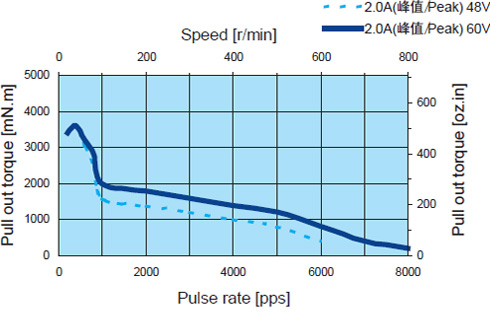

HB-86T2302
Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
-

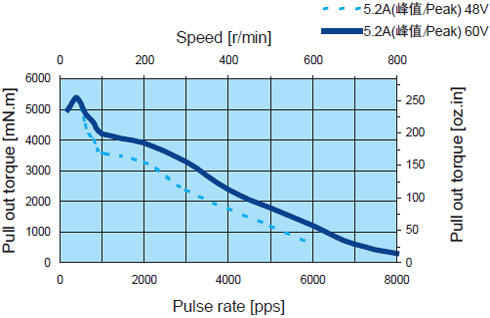

HB-86T3303
Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
