HB-60T 3 Phase hybrid stepping motor
HB-60T
□60mm | 1.2° | Bipolar | Low inertia
□60mm | 1.2° | Bipolar | Low inertia
- 免费电话：4006900109
- 咨询热线：021-63831567
- 电子邮件：deyusheng@163.com
Bipolar
| Model No. | Step torque angle (deg) |
Rated Voltage (V) |
Current (A) |
Resistance (ohm) |
Inductance (mH) |
Holding Torque (mN.m) |
Rotor Inertia (g.cm2) |
Outgoing line | Weight (g) |
Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| HB-60T1301 | 1.2° | 8 | 1.8 | 4.4 | 10.4 | 764 | 180 | 4 | 500 | 46 |
| HB-60T1302 | 1.2° | 3.6 | 4 | 0.9 | 6.2 | 754 | 180 | 4 | 500 | 46 |
| HB-60T3301 | 1.2° | 5.9 | 1.5 | 3.9 | 10.9 | 9.4 | 260 | 4 | 800 | 55 |
| HB-60T3302 | 1.2° | 1.7 | 5.8 | 0.3 | 0.76 | 900 | 260 | 4 | 800 | 55 |
| HB-60T5301 | 1.2° | 4.5 | 2 | 2.2 | 11.8 | 1523 | 460 | 4 | 1300 | 77 |
| HB-60T5302 | 1.2° | 2.6 | 5.8 | 0.45 | 1.3 | 1510 | 460 | 4 | 1300 | 77 |

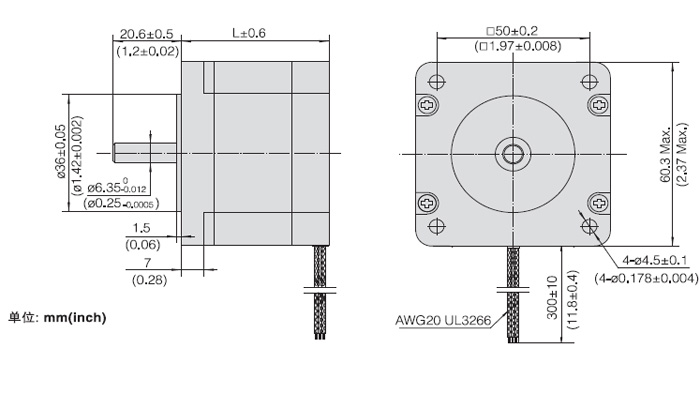

Dimensions
Dynamic Torque Curves
-

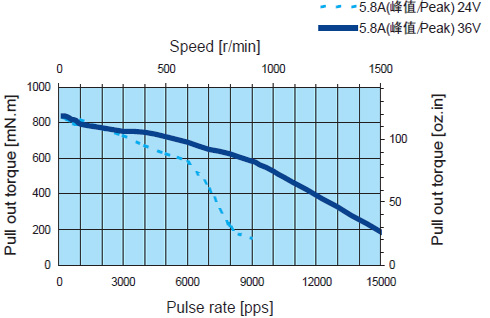

HB-60T3302
Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
-

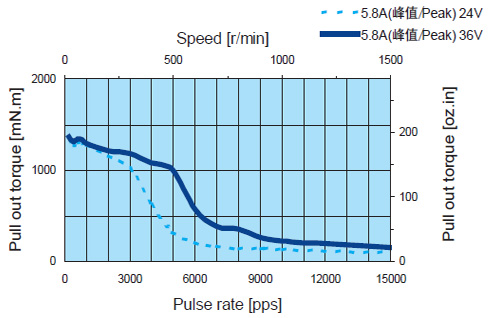

HB-60T5302
Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
-
HB-60T3301
Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
