52 Series Planetary Gearbox

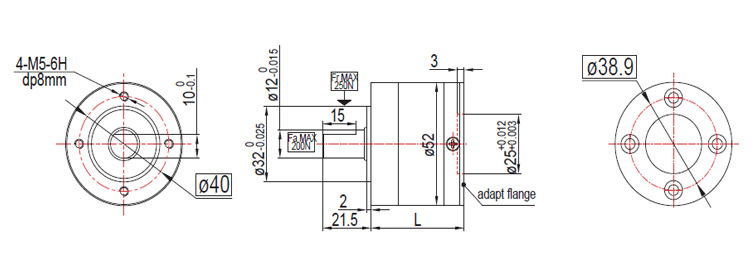

Output flange:Aluminium,Type standard(Below Drawing)
Housing:Steel
Input flange:Aluminium,Type

机械尺寸图

Technical and Performance Date		1-stage	2-stage
Ratio		5,10	15,20,25,30,40,50,100
L	mm	42	52
Rated load	Nm	3.5	15
Max load	Nm	6	25
Efficiency	%	95	90
Backlash	arcmin	≤15	≤25
Weight	KG	0.6	0.8
Storage temperature	℃	-30~+60
Storage humidity	%	~80
Running environment temperature	℃	-10~+90
Rated input speed	rpm	3000
Max input speed	rpm	5000
Protect class	IP	65
Lubrication		Life grease lubrication
Noise	dB	≤45
Service life	h	~8,000
