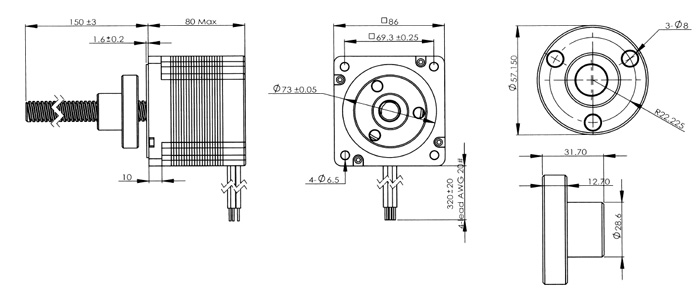

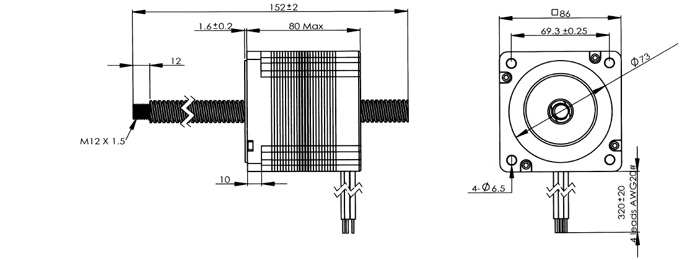

86mm Screw the hybrid stepping motor

0.00508mm - 0.127mm

Motor type	Phase current	Resistance per phase	Each phase inductance	PIN number	Motor length
HL-86S348014-013	0.3A	9.2Ω±10%	51mH±20%	4	80mm
HL-86S348014-050	0.5A	1.6Ω±10%	8.8mH±20%	4	80mm
HL-86S348014-055	0.55A	0.52Ω±10%	2.9mH±20%	4	80mm

Screw diameter	Screw diameter	Lead(in)	Lead(mm)	步长1.8°(mm)	步长0.9°(mm)
0.625	15.875	0.1	2.54	0.012	0.0051
0.625	15.875	0.125	3.175	0.015	0.0064
0.625	15.875	0.2	5.08	0.025	0.0102
0.625	15.875	0.25	6.35	0.031	0.0127
0.625	15.875	0.1	2.54	0.127	0.0508

N Connecting shaft

E External driv
