35mm Screw the hybrid stepping motor
0.003 - 0.048768mm
- 免费电话：4006900109
- 咨询热线：021-63831567
- 电子邮件：deyusheng@163.com
Motor specifications
| Motor type | Phase current | Resistance per phase | Each phase inductance | PIN number | Motor length |
|---|---|---|---|---|---|
| HL-35S143524-005 | 0.5A | 14Ω±10% | 20mH±20% | 4 | 35mm |
| HL-35S143524-001 | 1.0A | 3.5Ω±10% | 4mH±20% | 4 | 35mm |
| HL-35S144744-015 | 1.5A | 1.5Ω±10% | 2.0mH±20% | 4 | 45mm |
| HL-35S144744-005 | 0.5A | 28Ω+/-10% | 40mH±20% | 4 | 47mm |
| HL-35S144744-001 | 1.0A | 5.5Ω±10% | 7.6mH±20% | 4 | 47mm |
| HL-35S144744-002 | 2.0A | 1.2Ω±10% | 1.95mH±20% | 4 | 47mm |
Optional screw lead and basic step
| Screw diameter | Screw diameter | Lead(in) | Lead(mm) | Step(mm) | |
|---|---|---|---|---|---|
| 0.25 | 6.35 | 0.024 | 0.6096 | 0.003 | 0.015 |
| 0.25 | 6.35 | 0.048 | 1.2192 | 0.006 | 0.03 |
| 0.25 | 6.35 | 0.05 | 1.27 | 0.006 | 0.032 |
| 0.25 | 6.35 | 0.063 | 1.6002 | 0.008 | 0.04 |
| 0.25 | 6.35 | 0.096 | 2.4384 | 0.012 | 0.061 |
| 0.25 | 6.35 | 0.1 | 2.54 | 0.012 | 0.064 |
| 0.25 | 6.35 | 0.192 | 4.8768 | 0.024 | 0.122 |
| 0.25 | 6.35 | 0.025 | 6.35 | 0.031 | 0.159 |
| 0.25 | 6.35 | 0.33 | 8.382 | 0.041 | 0.21 |
| 0.25 | 6.35 | 0.384 | 9.7536 | 0.048 | 0.244 |

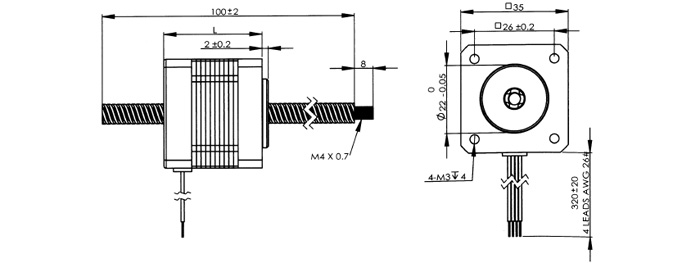

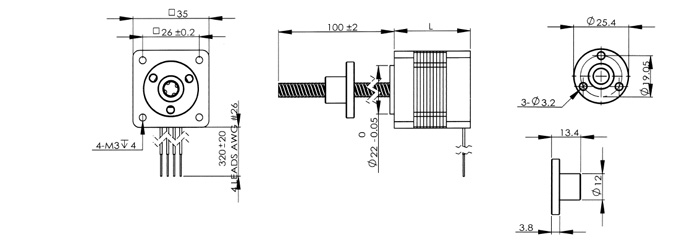

Motor outline (mm)
N Connecting shaft
E External driv
