20mm Screw the hybrid stepping motor

0.006mm, 0.01mm, 0.02mm, 0.04mm

Motor type	Phase current	Resistance per phase	Each phase inductance	PIN number	Motor length
HL-20S83024-003	0.3A	20Ω±10%	5.0mH±20%	4	30mm
HL-20S83024-003	0.5A	5Ω±10%	1.5mH±20%	4	30mm
HL-20S84244-006	0.6A	10Ω±10%	5.5mH±20%	4	42mm

Screw diameter	Screw diameter	Lead(in)	Lead(mm)	Step(mm)
0.138	3.5052	0.024	0.6096	0.0030
0.138	3.5052	0.048	1.2192	0.0061
0.138	3.5052	0.079	2	0.01
0.138	3.5052	0.158	4	0.02
0.138	3.5052	0.315	8	0.04

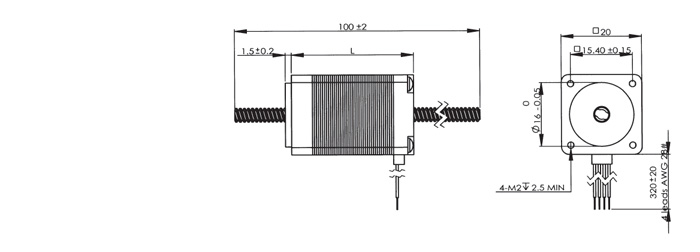

N Connecting shaft

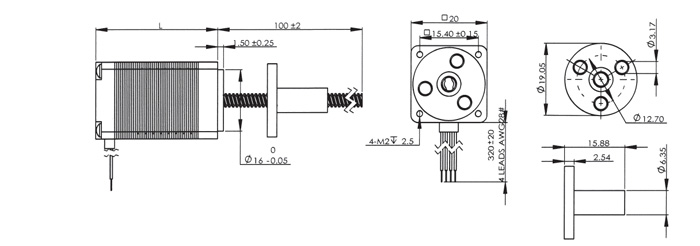

E External driv
