HB-86S hybrid stepping motor

HB-86S
□86mm　|　1.8°　|　Unipolar　|　Big torque output

Model No.	Step torque angle (deg)	Rated Voltage (V)	Current (A)	Resistance (ohm)	Inductance (mH)	Holding Torque (mN.m)	Rotor Inertia (g.cm²)	Outgoing line	Weight (g)	Thickness (mm)
HB-86S1801	1.8°	3.1	3.2	0.96	6	4	1100	4	1.7	66.5
HB-86S1801	1.8°	2.2	4.5	0.48	1.5	2.8	1100	4	1.7	66.5
HB-86S1801	1.8°	1.5	6.4	0.24	1.5	4	1100	4	1.7	66.5
HB-86S2801	1.8°	3.5	3.2	1.1	7	5.6	1400	4	2.3	79.5
HB-86S2801	1.8°	2.5	4.5	0.55	1.8	4	1400	4	2.3	79.5
HB-86S2801	1.8°	1.8	6.4	0.28	1.8	5.6	1400	4	2.3	79.5
HB-86S3801	1.8°	4.2	3.2	1.32	12	8.2	1950	4	2.7	95.5
HB-86S3801	1.8°	3	4.5	0.66	3	5.8	1950	4	2.7	95.5
HB-86S3801	1.8°	2.1	6.4	0.33	3	8.2	1950	4	2.7	95.5
HB-86S5801	1.8°	5.4	2.8	1.94	21.6	12	2850	4	3.8	124
HB-86S5801	1.8°	3.9	4	0.97	5.4	8.4	2850	4	3.8	124
HB-86S5801	1.8°	2.7	5.6	0.49	5.4	12	2850	4	3.8	124

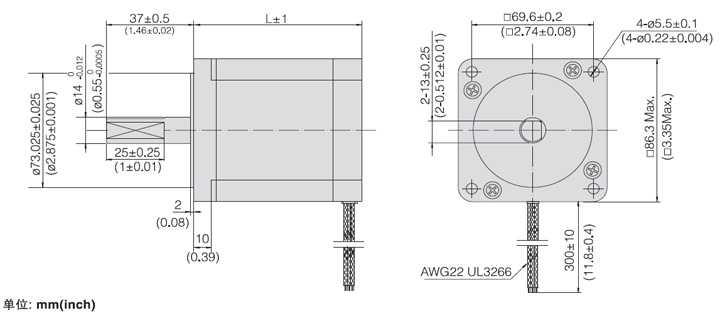

尺寸图

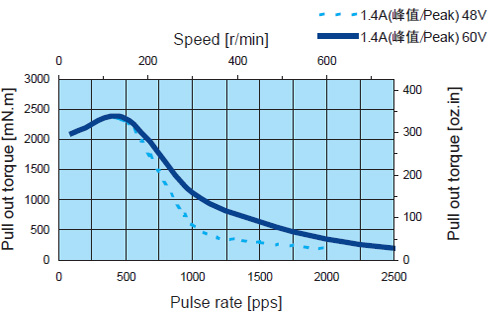

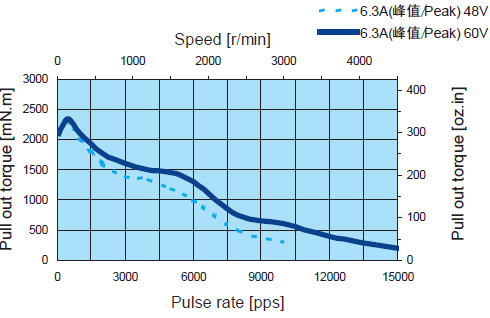

HB-86S0801

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

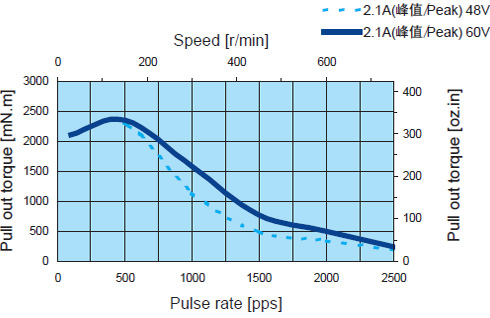

HB-86S0802

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

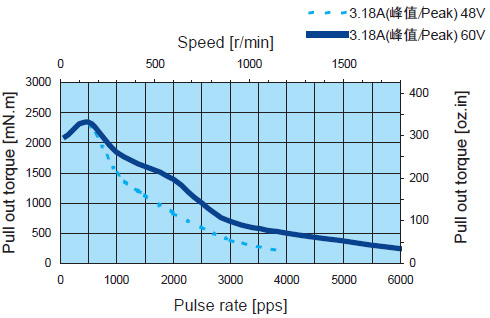

HB-86S0803

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
HB-86S0804

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

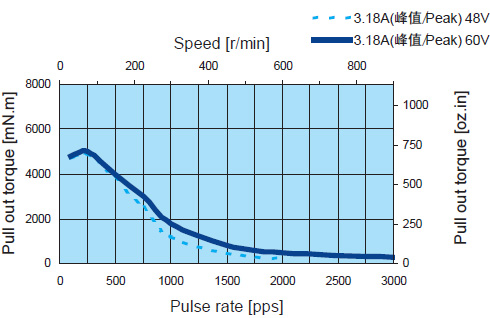

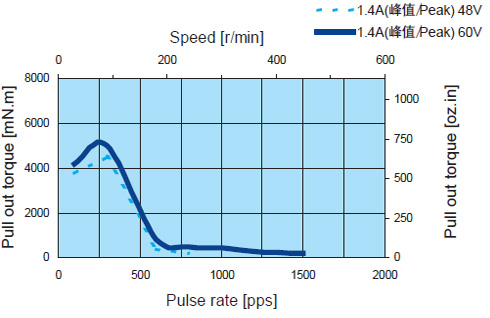

HB-86S1806

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

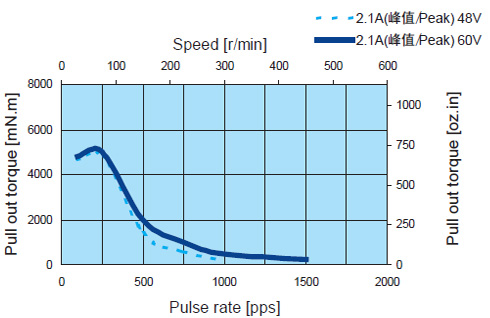

HB-86S1807

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
HB-86S1808

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

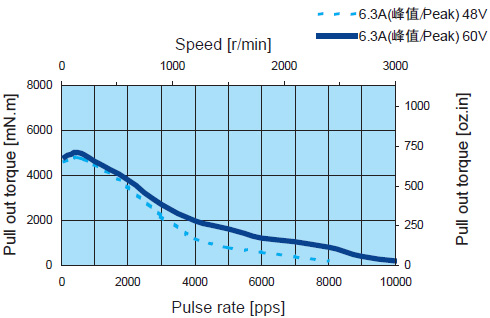

HB-86S1809

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

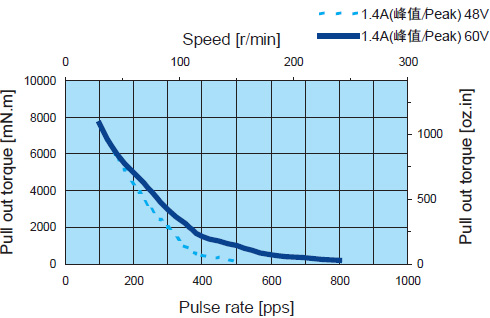

HB-86S4801

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step

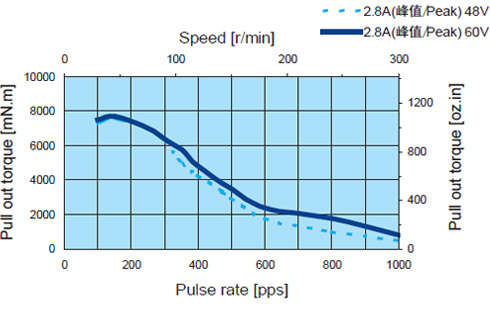

HB-86S4802

Conditions: Bi-polar Constant Current Driver
Driver: DMBSD7875
Mode: Full Step
